RF Hybrid Cannulae

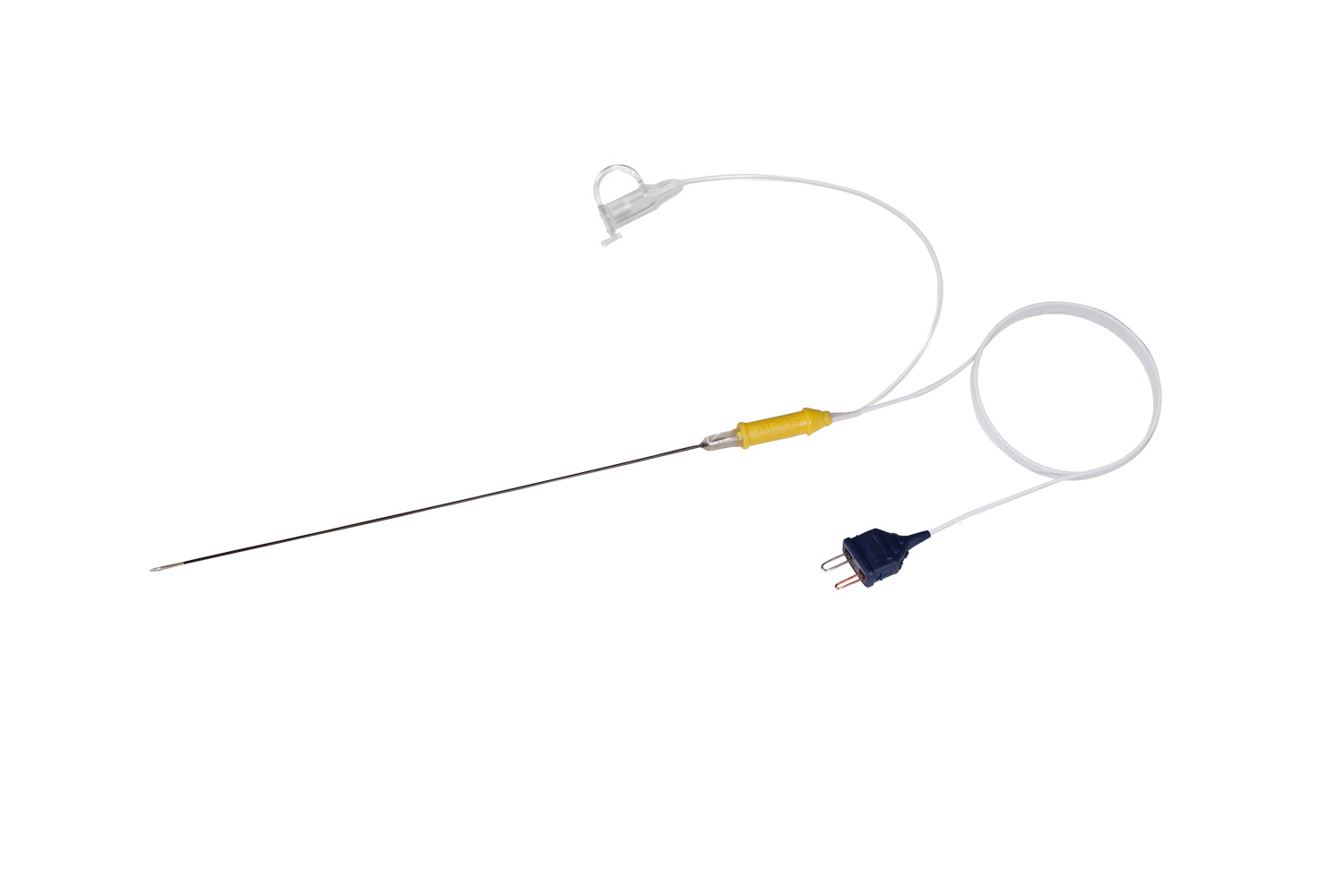

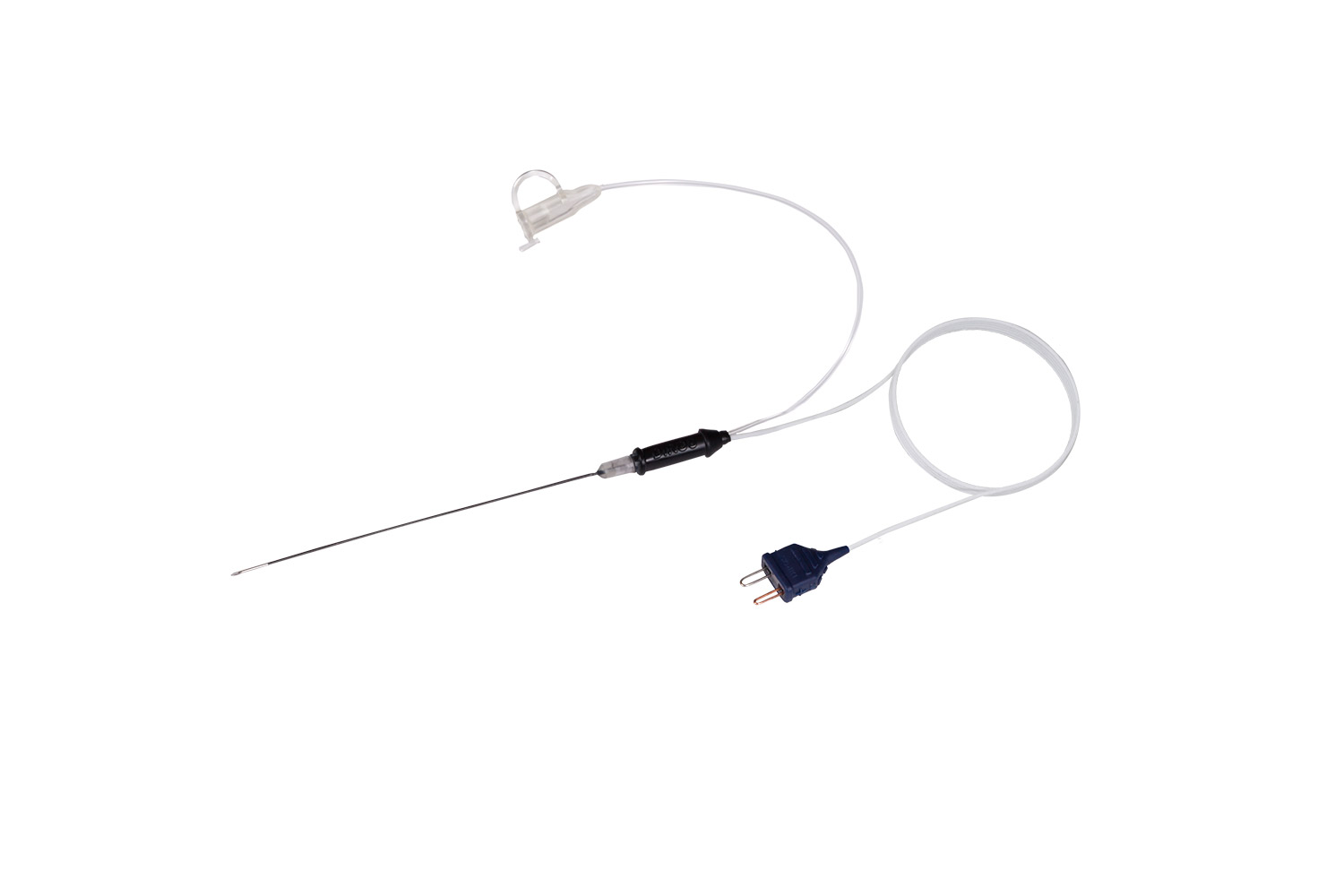

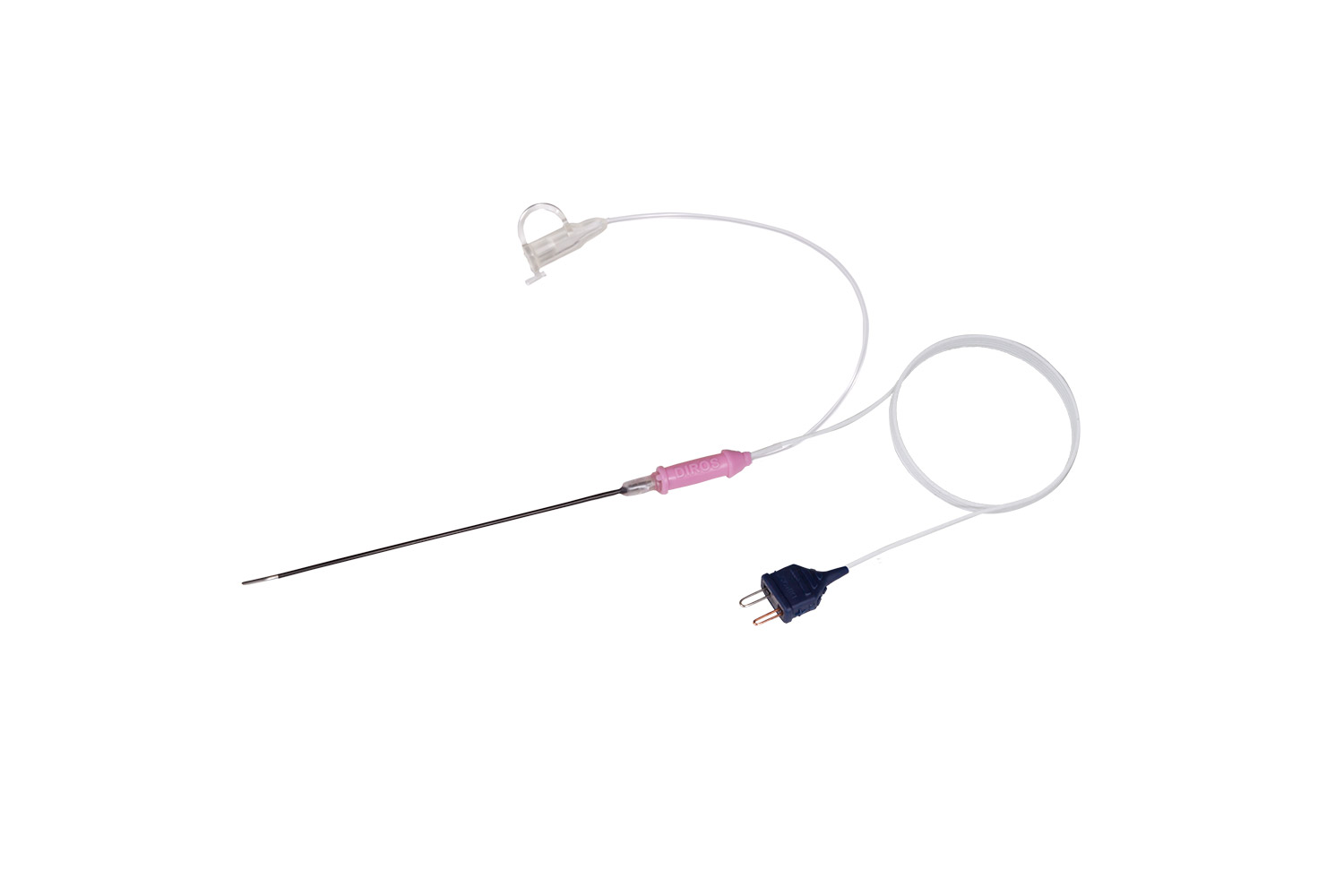

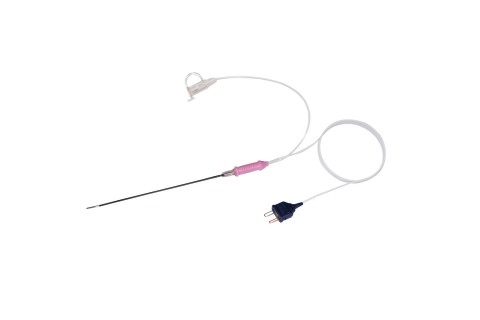

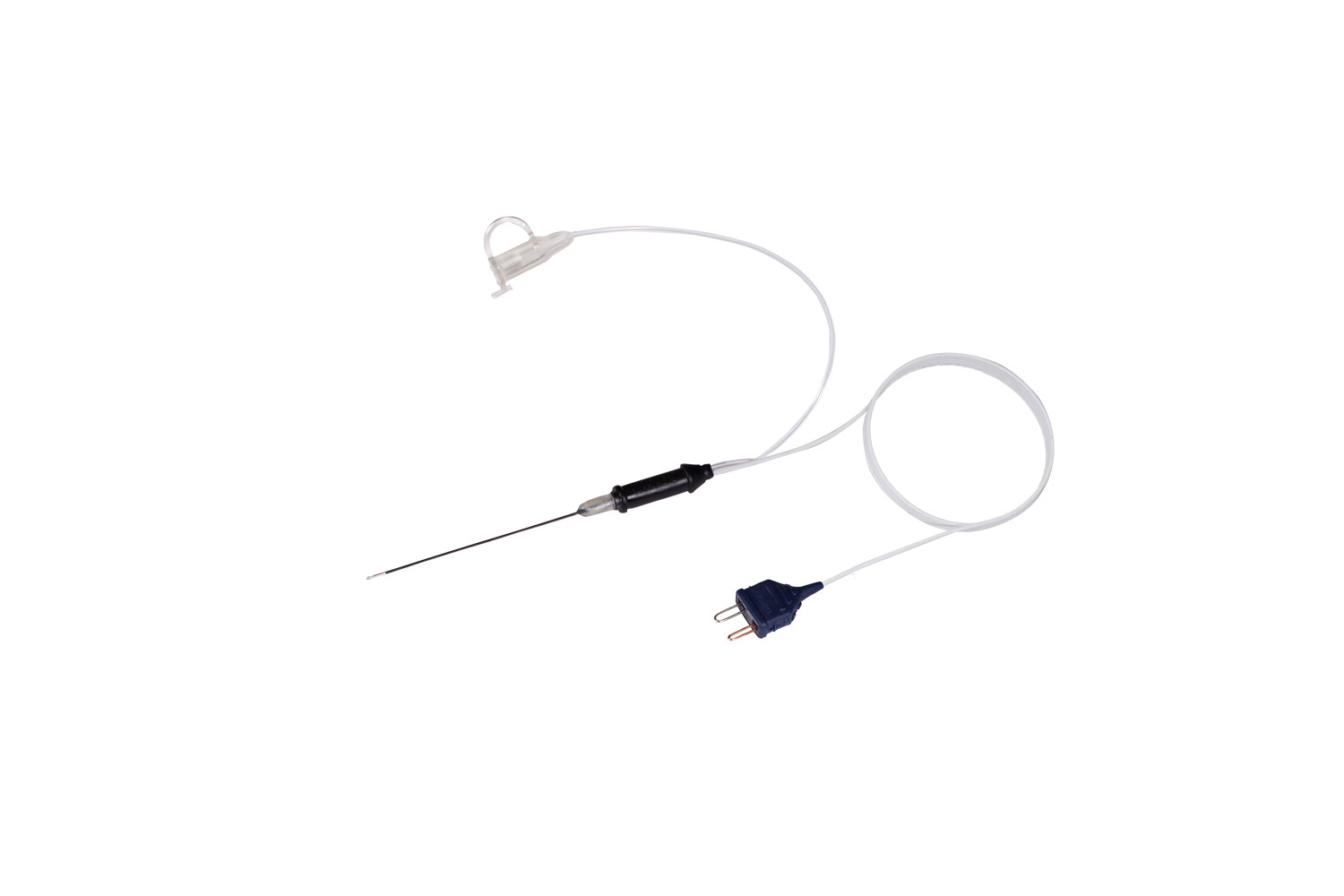

Diros OWL® RF Hybrid Cannulae comprise a RF Cannula, temperature sensor, and long flexible tubing connected to an injection port all in one.

  1. General Details

    RF Hybrid Cannulae

    Diros OWL® RF Hybrid Cannulae (Patent Awarded and Patents Pending) comprise a RF Cannula, a temperature sensor, and long flexible tubing connected to an injection port all in one. A Hybrid Cannula ensures the temperature sensor is always at the bare tip of the cannulae, eliminates the possibility of movement as in conventional RF cannulae where an RF probe must be removed from the cannula to allow fluid injection prior to lesion making, then reinserted before the lesion is made. This feature also decreases procedure time and ultimately provides the user with the most accurately positioned, and therefore best possible lesion.

    Diros OWL® RF Hybrid Cannulae (Patent Awarded and Patents Pending) are manufactured using medical grade stainless steel and insulation creating a rigid, sharp, and smooth cannula designed for ease of use to effectively and accurately place the cannula’s bare tip.

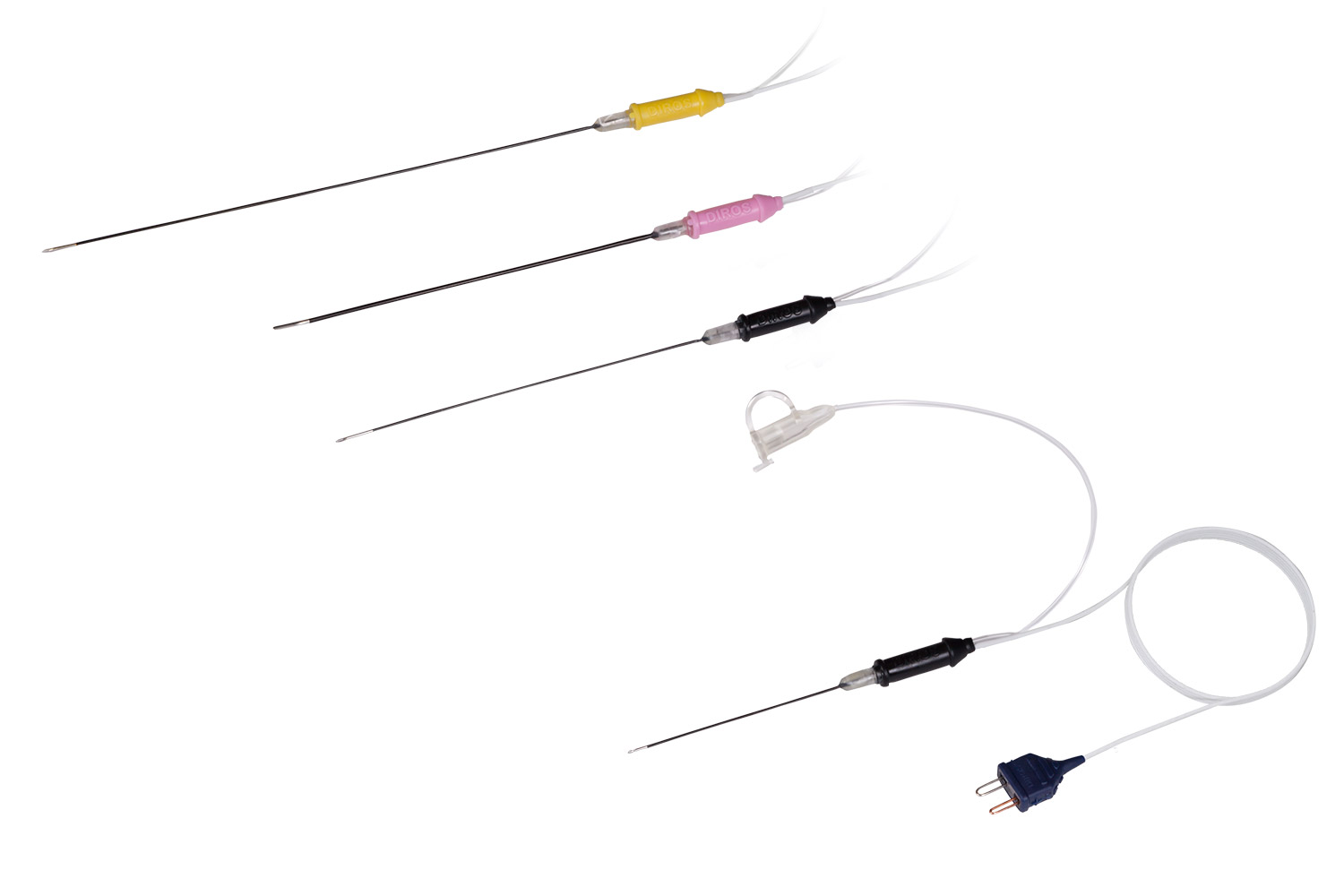

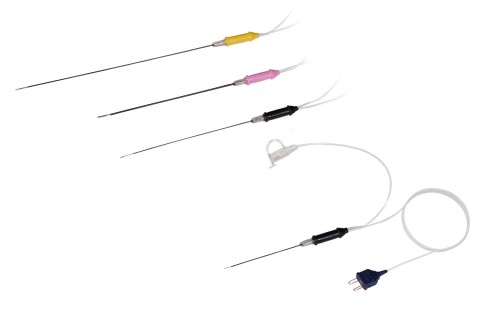

    Offered in a range from 23 gauge to 16 gauge, and with color coded handles for identification and ease of use.

    Bare tip configurations: Sharp Straight, Sharp Curved, Blunt Curved, Blunt Straight.

    The Diros OWL® RF Hybrid Cannulae (Patent Awarded and Patents Pending) decrease costs, eliminate the possibility of cross-contamination, and are individually packaged/ sterilized and offered in a box of 10 pieces.

    Below are some common Hybrid Cannulae configurations. If you require a configuration that you do not see below, please feel free to contact us.

    Cables

  2. Hybrid Cannulae Configurations
    DIROS Part No. Gauge Length (mm) Bare/ Active Tip (mm) Tip Configuration
    DHC-022/54/4 22 54 4 SHARP STRAIGHT
    DHC-022/60/5 22 60 5 SHARP STRAIGHT
    DHC-022/100/5 22 100 5 SHARP STRAIGHT
    DHC-022/100/10 22 100 10 SHARP STRAIGHT
    DHC-022/100/10-SC 22 100 10 SHARP CURVED
    DHC-020/100/5 20 100 5 SHARP STRAIGHT
    DHC-020/100/10-SC 20 100 10 SHARP CURVED
    DHC-020/100/5-BC 20 100 5 BLUNT CURVED
    DHC-020/100/10-BC 20 100 10 BLUNT CURVED
    DHC-020/150/5 20 150 5 SHARP STRAIGHT
    DHC-020/150/10 20 150 10 SHARP STRAIGHT
    DHC-020/150/10-SC 20 150 10 SHARP CURVED
    DHC-020/150/10-BC 20 150 10 BLUNT CURVED
    DHC-018/100/10 18 100 10 SHARP STRAIGHT
    DHC-018/100/10-SC 18 100 10 SHARP CURVED
    DHC-018/150/10 18 150 10 SHARP STRAIGHT
    DHC-018/150/10-SC 18 150 10 SHARP CURVED
  3. Specs/Technical Data

    To connect a Diros OWL® RF Hybrid Cannula with a Diros OWL® URF-3AP + MLA-4

    H4-S2F-S SET OF 4, ADAPTER CABLES FOR MLA-4 TO HYBRID CANNULAE OR DISPOSABLE TC RF PROBES/TEMPERATURE SENSORS

    To connect with a Diros OWL® URF-3AP

    463-103-HCT-S CABLE FOR URF-3AP TO T-TYPE HYBRID CANNULA OR THERMOCOUPLE DISPOSABLE RF PROBE/TEMPERATURE SENSOR
    463-103-BPHCT-S CABLE FOR URF-3AP TO BIPOLAR T-TYPE HYBRID CANNULA OR OWL® DISPOSABLE THERMOCOUPLE RF PROBE/TEMPERATURE SENSOR
