RF Probes Re-useable

Diros OWL® Re-useable RF probes are designed for repeated use and autoclave sterilization. These probes are color coded according to their length for ease of use.

Category:
  1. General Details

    RF Probes Re-useable

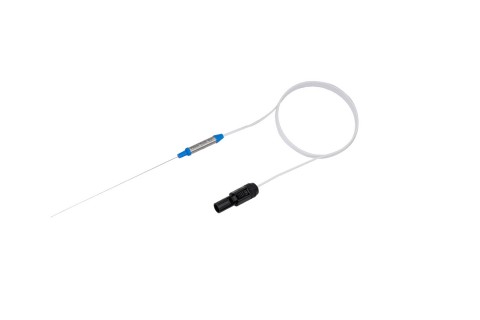

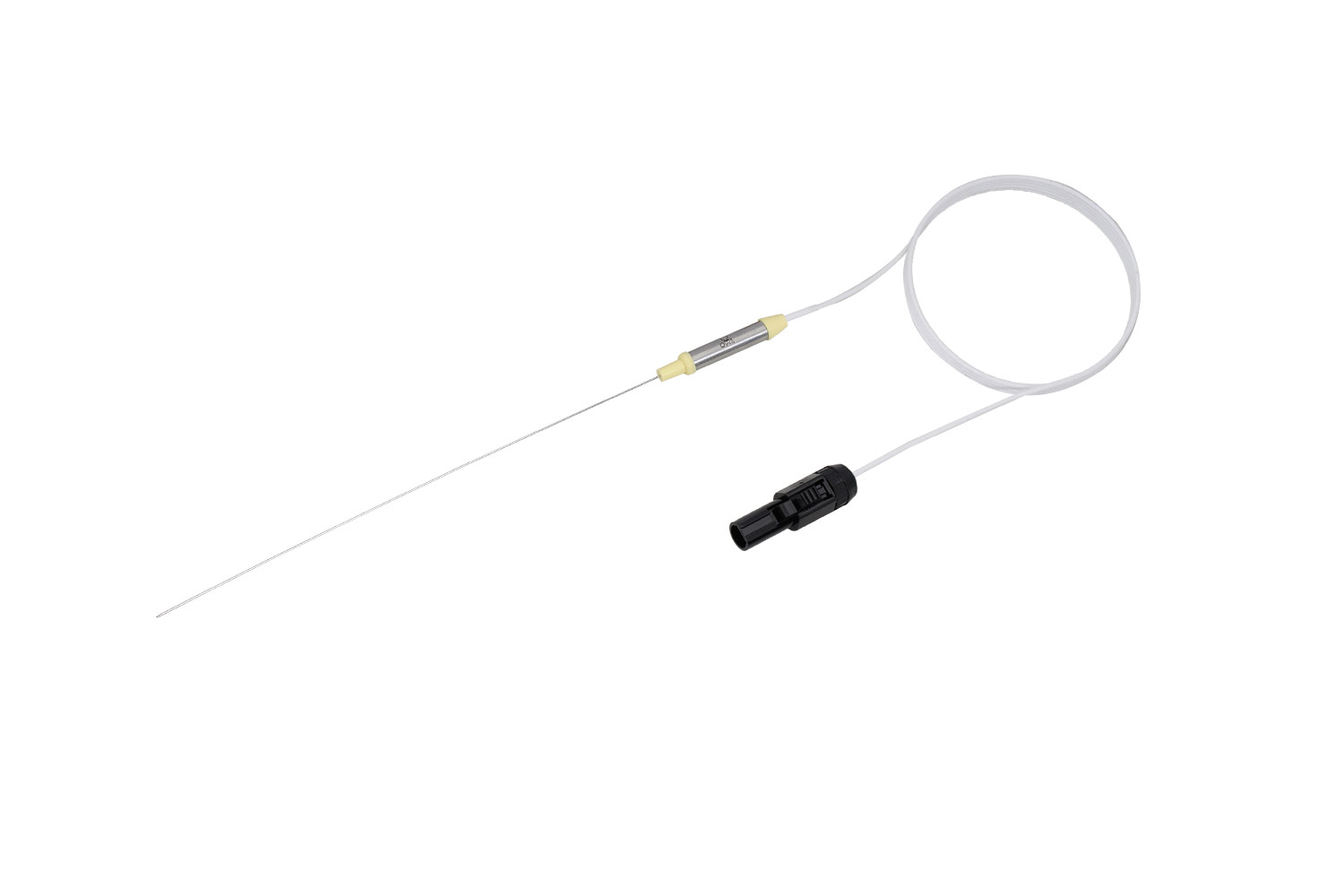

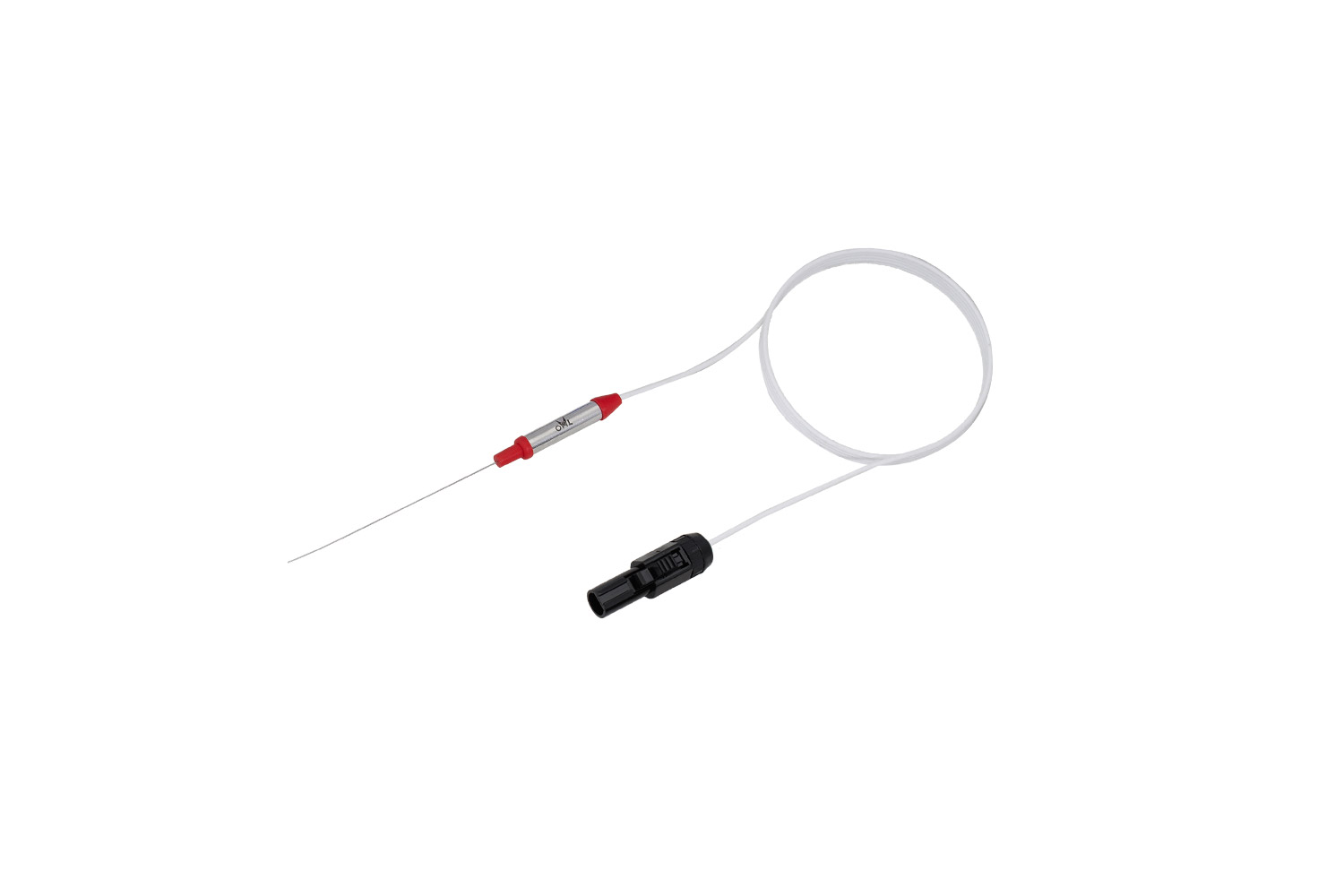

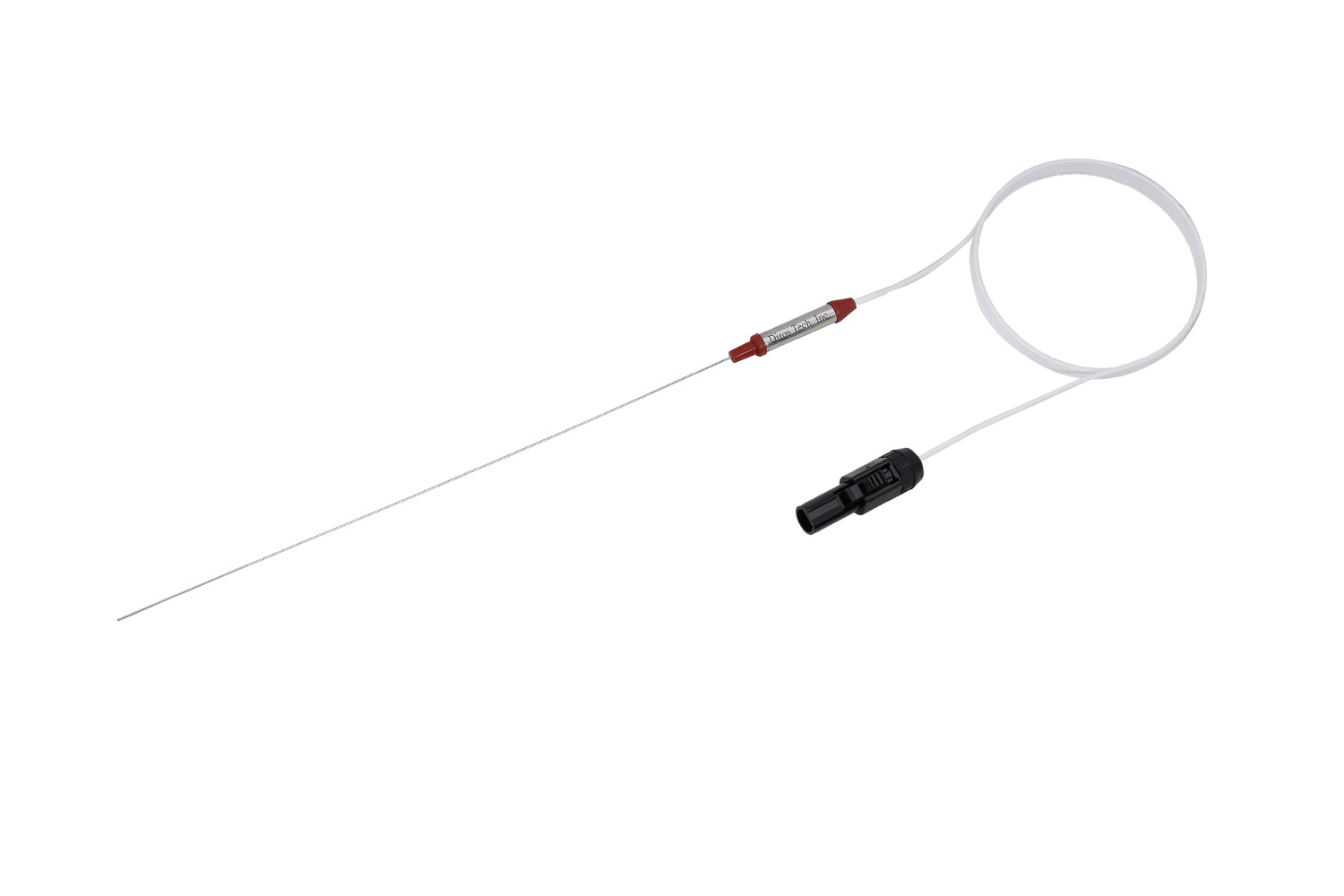

    Diros OWL® Re-useable RF probes are designed for repeated use and autoclave sterilization. These probes are color coded according to their length for ease of use: 5 cm (red), 10 cm (blue), 15 cm (yellow), and 20 cm (brown).

    Re-useable Diros OWL® RF Probes can be purchased with an extension/adapter cable or an 8 ft long attached cable that will plug directly into the Diros OWL® MLA-4 Multilesion adapter.

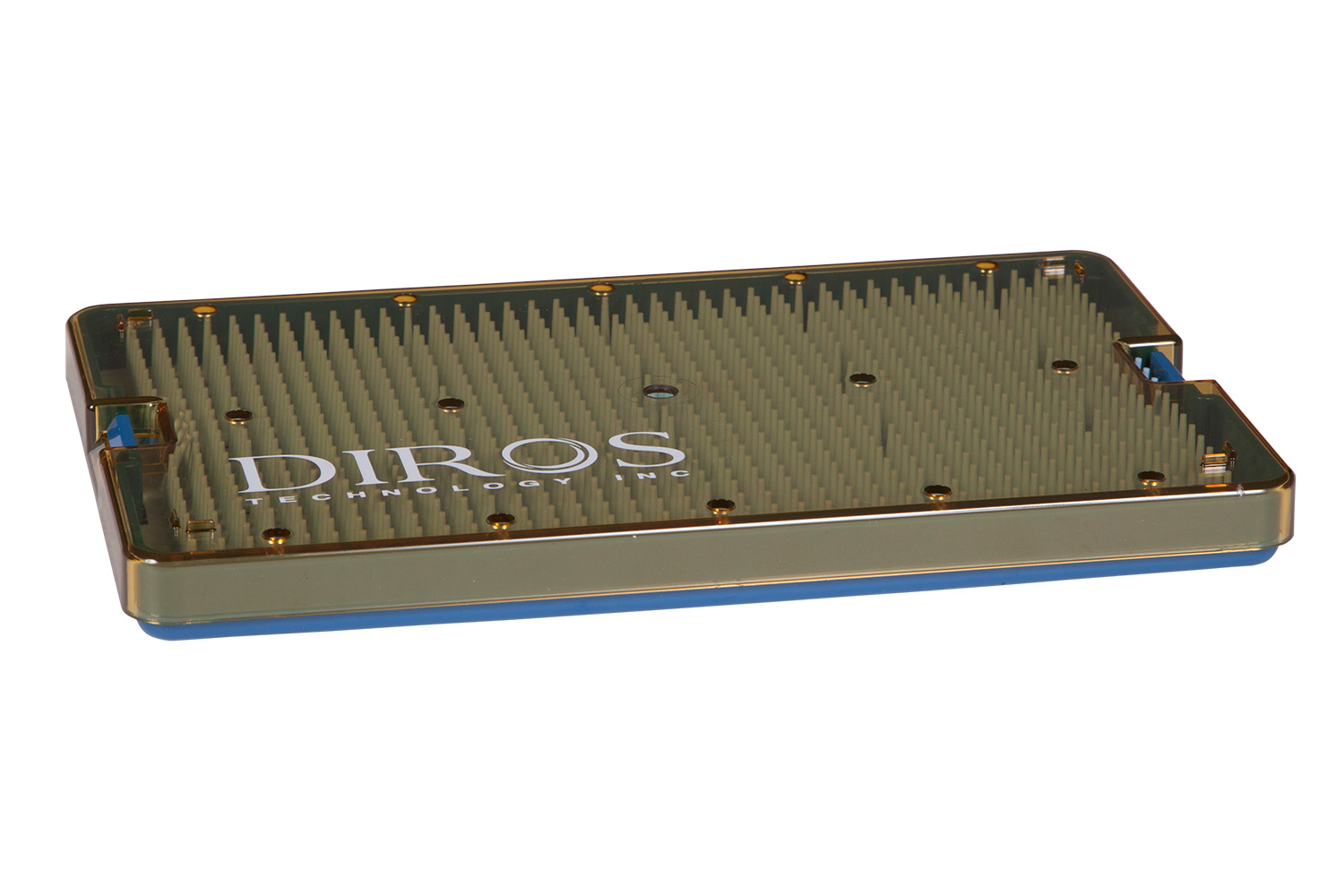

    These RF probes can be purchased in a SET which includes an Autoclave Case and Protector Tube to protect the shaft of the Probe.

    Cables for RF Probes Re-useable

  2. Specs/Technical Data

    DIROS OWL® RF Probes Re-useable

    Thermocouple TCH

    Diros Part No. Description
    467-005-TCH-S FACET DENERVATION R.F. PROBE/TEMPERATURE SENSOR (5CM) TCH
    467-010-TCH-S FACET DENERVATION R.F. PROBE/TEMPERATURE SENSOR (10CM) TCH
    466-015-TCH-S FACET DENERVATION R.F. PROBE/TEMPERATURE SENSOR (15CM) TCH
    466-020-TCH-S FACET DENERVATION R.F. PROBE/TEMPERATURE SENSOR (20CM) TCH

    Thermistor TM

    Diros Part No. Description
    466-005-S FACET DENERVATION R.F. PROBE/TEMPERATURE SENSOR (5CM)
    466-010-S FACET DENERVATION R.F. PROBE/TEMPERATURE SENSOR (10CM)
    466-015-S FACET DENERVATION R.F. PROBE/TEMPERATURE SENSOR (15CM)
    466-020-S FACET DENERVATION R.F. PROBE/TEMPERATURE SENSOR (20CM)

    Autoclave Case

    Diros Part No. Description
    466-PB3-S AUTOCLAVE CASE
    466-PB4-S LARGE AUTOCLAVE CASE

    To connect with a Diros OWL® URF-3AP with MLA-4

    Diros Part No. Description
    H4-H4-S SET OF 4, EXTENSION CABLES FOR MLA-4 TO RF PROBES/TEMPERATURE SENSORS RE-USEABLE TCH

    To connect with a Diros OWL® URF-3AP (directly, no MLA-4)

    Diros Part No. Description
    463-103-TCH-S CABLE FOR URF-3AP TO TCH PROBE/TEMPERATURE SENSOR
    463-103-BPTCH-S CABLE FOR URF-3AP TO BIPOLAR TCH PROBE/TEMPERATURE SENSOR
    6-463-103-TCH-S 6 INCH CABLE FOR URF-3AP TO TCH PROBE/TEMPERATURE SENSOR
    6-463-103-BPTCH-S 6 INCH CABLE FOR URF-3AP TO BIPOLAR TCH PROBE/TEMPERATURE SENSOR
    463-103-TM-S CABLE FOR URF-3AP TO THERMISTOR R.F. PROBE/TEMPERATURE SENSOR
