RF TridentTM Hybrid Cannulae

Diros OWL® RF TridentTM Hybrid Cannulae allow the user to limit the approach to a nerve such as the medial branch to a single step.

  1. General Details

    RF TridentTM Hybrid Cannulae

    Revolutionizing the way RF ablation is performed:

    • Quicker placement: perpendicular approach
    • Larger focused lesion, minimizing collateral damage
    • User can inject when tines are deployed or retracted
    • Less X-ray exposure
    • Small diameter cannula that produces a lesion with a large base
    • Quicker patient recovery time
    • Longer lasting pain relief

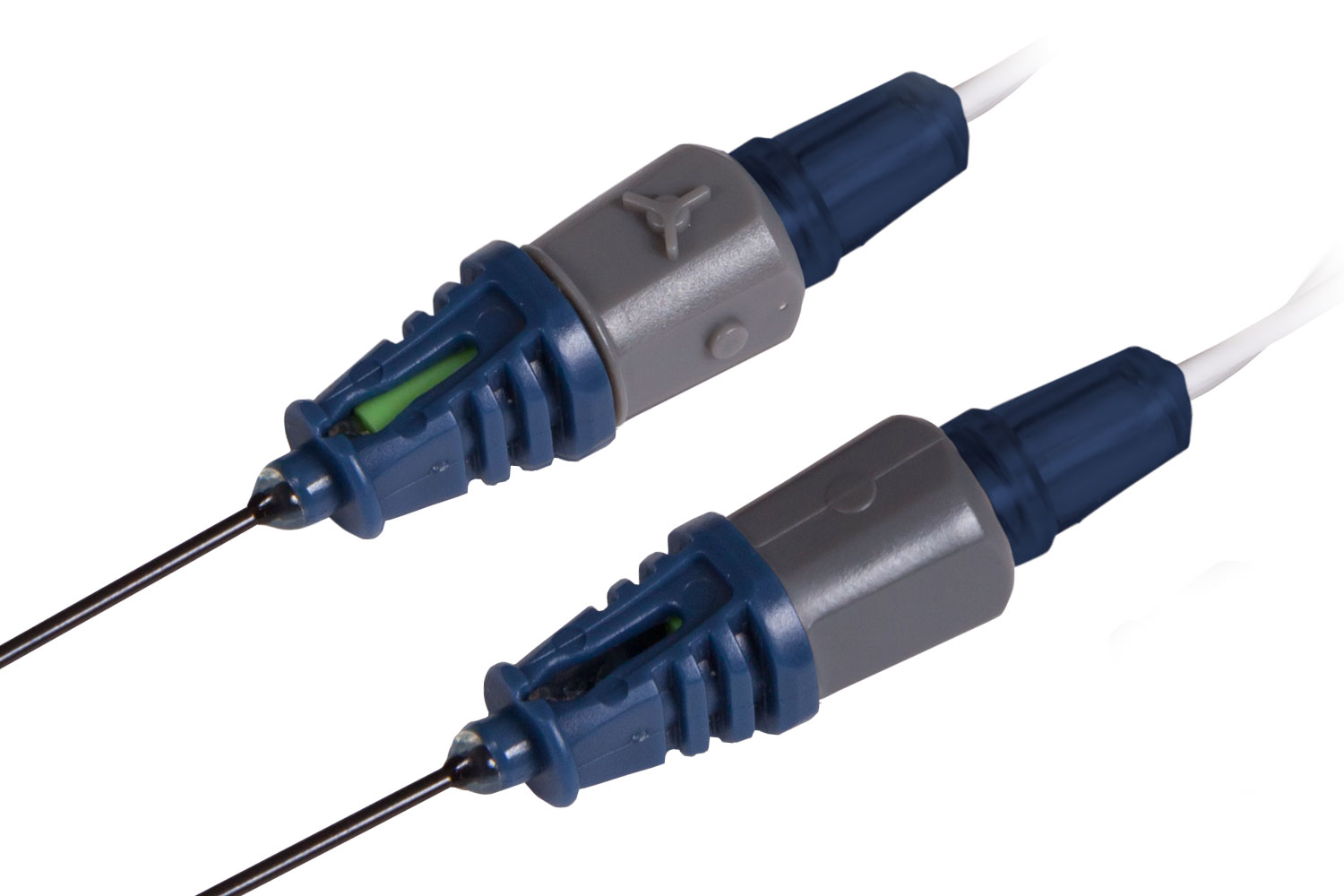

    Diros OWL® RF TridentTM Hybrid Cannulae encompasses a TridentTM Cannula, a temperature sensor, and a long flexible injection port all in one. The Hybrid version of the TridentTM Cannulae allows for even more time saving, ensures your temperature sensor is always at the bare tip, and eliminates movement of placement when stimulating or injecting.

    Diros OWL® RF TridentTM Hybrid Cannulae allow the user to limit the approach to a nerve such as the medial branch to a single step, perpendicular approach, very much the same as an anesthetic block of this nerve, resulting in quicker placement, less x-ray exposure, and greatly reducing procedure time. Once the TridentTM Hybrid Cannula’s tip has reached the nerve, 3 tines are easily deployed from the tip by simple manipulation of the handle. The tine configuration is pyramid-like, resulting in a similar pyramid shaped lesion whose large base encompasses the nerve.

    This superior technology allows for a large lesion to be performed on the targeted area without collateral damage. As a result, a patient’s recovery time is much quicker as the lesion made is a focused lesion on the targeted site using a thin gauge shaft for insertion that expands into a larger gauge bare tip.

    Diros OWL® RF TridentTM Hybrid Cannulae are manufactured using medical grade stainless steel, insulated except at the tip, and pre-formed curved Nitinol for the tines, creating an assembly designed for ease of use to innovatively produce a unique and effective lesion at the cannula’s bare tip.

    Offered in 18 Gauge with a 5mm active tip.

    The Diros OWL® RF TridentTM Hybrid Cannulae decrease costs, eliminate the possibility of cross-contamination, and are individually packaged/sterilized and offered in a box of 10 pieces.

    Cables for Trident Hybrid Cannulae

  2. Specs/Technical Data
    DIROS Part Number Gauge Length Bare/Active Tip (mm)
    DTRH-018/50/5 18 50 mm 5 mm
    DTRH-018/100/5 18 100 mm 5 mm
    DTRH-018/150/5 18 150 mm 5 mm
    DTRH-018/200/5 18 200 mm 5 mm

    To connect a Diros OWL® RF Trident Hybrid Cannula with a Diros OWL® URF-3AP + MLA-4

    H4-S2F-S SET OF 4, ADAPTER CABLES FOR MLA-4 TO HYBRID CANNULAE OR DISPOSABLE TC RF PROBES/TEMPERATURE SENSORS

    To connect a Diros OWL® RF Trident Hybrid Cannula with a Diros OWL® URF-3AP

    463-103-HCT-S CABLE FOR URF-3AP TO T-TYPE HYBRID CANNULA OR THERMOCOUPLE DISPOSABLE RF PROBE/TEMPERATURE SENSOR
    463-103-BPHCT-S CABLE FOR URF-3AP TO BIPOLAR T-TYPE HYBRID CANNULA or OWL® DISPOSABLE THERMOCOUPLE RF PROBE/TEMPERATURE SENSOR
