DXE Cannulae

Our Products
Diros Technology Inc.
120 Gibson Drive, Markham, Ontario, Canada L3R 2Z3
(905) 415-3440
(905) 415-0667

Diros OWL® DXE Cannulae are used for non-temperature controlled radiofrequency lesion procedures.

Category:
  1. General Details

    DXE Cannulae

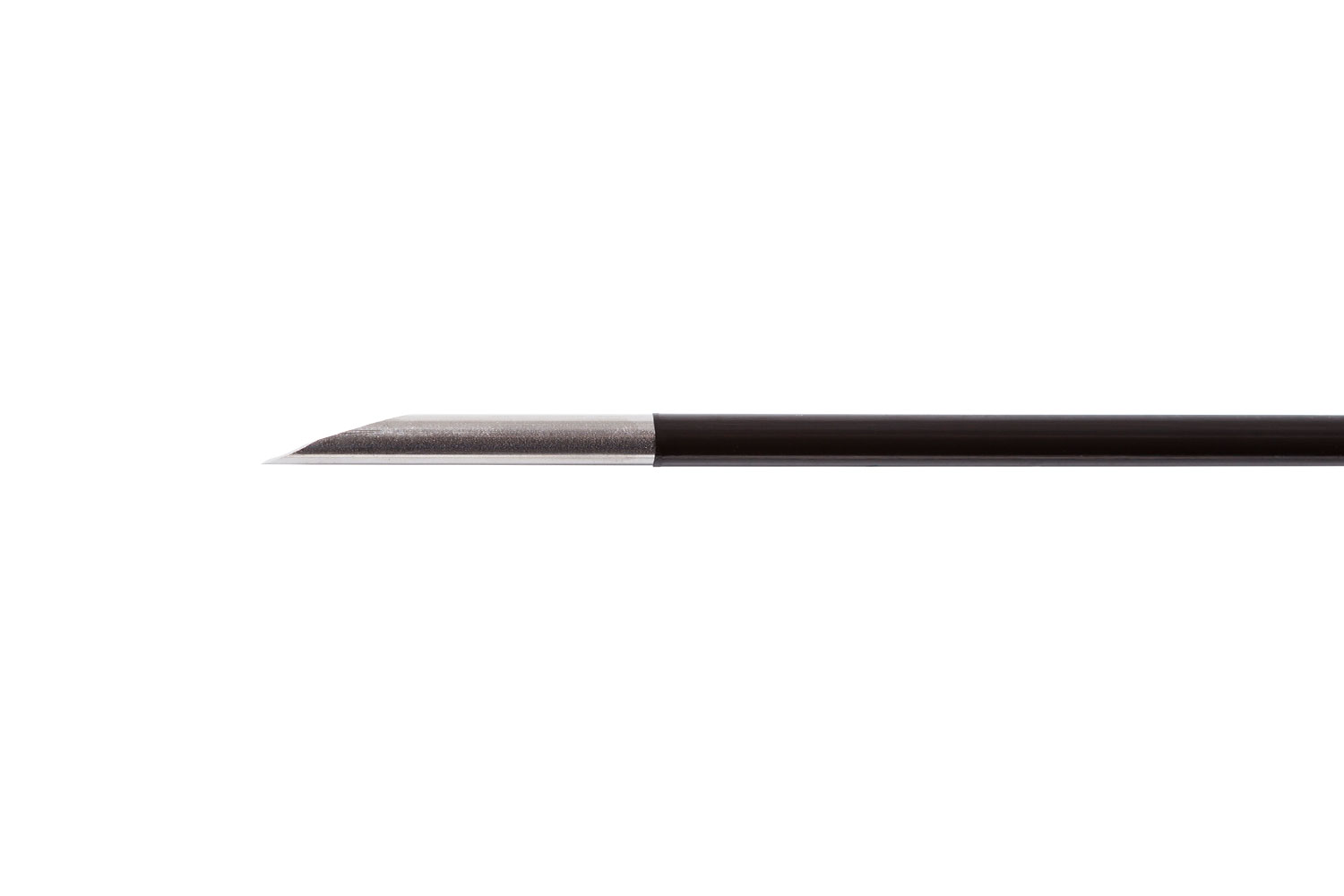

    Diros OWL® DXE Cannulae are used for non-temperature controlled radiofrequency lesion procedures. The operator uses the RF OUTPUT CONTROL rotary knob and voltage readings to determine the lesion created or PRF delivered to the patient. The DXE Cannula has a flexible, long injection port attached, which allows the user to inject and keep hands outside the x-ray beam. The DXE Cannulae are manufactured using medical grade stainless steel and insulation creating a rigid, sharp, and smooth cannula designed for ease of use and for accurate placement of the cannula bare tip.

    DXE cannulae are offered in 23 and 22 gauge, and are color-coded for identification.

    Bare tip configurations: Sharp Straight, 5 mm bare tip.

    The Diros OWL® DXE Cannulae decrease costs, eliminate the possibility of cross-contamination, and are individually packaged/sterilized and offered in a box of 10 pieces.

    Cables for DXE Cannulae

    CABLE FOR URF-3AP TO DXE/ DST

    463-103-DXE-S

    CABLE FOR URF-3AP TO 4 DXE/ DST

    463-103-DXE4-S

    CABLE FOR URF-3AP TO R.F. PROBE (NO TEMPERATURE SENSING)

    463-103-NT-S

    CABLE FOR URF-3AP TO 4 R.F. PROBE (NO TEMPERATURE SENSING)

    463-103-NT4-S

  2. Cannulae Configurations
    DIROS Part No. Gauge Tip Configuration Length (mm) Bare/Active Tip (mm)
    DXE-023/60/5 23 SHARP STRAIGHT 60 mm 5 mm
    DXE-023/100/5 23 SHARP STRAIGHT 100 mm 5 mm
    DXE-022/100/5 22 SHARP STRAIGHT 100 mm 5 mm
    DXE-023/150/5 23 SHARP STRAIGHT 150 mm 5 mm
    DXE-022/150/5 22 SHARP STRAIGHT 150 mm 5 mm
  3. Specs/Technical Data

    To connect with a Diros OWL® URF-3AP

    Part No. Description
    463-103-DXE-S CABLE FOR URF-3AP TO DXE CANNULAE (NO TEMPERATURE SENSING)
    463-103-NT-S CABLE FOR URF-3AP TO R.F. PROBE (NO TEMPERATURE SENSING)
    463-103-4DXE-S CABLE FOR URF-3AP TO FOUR DXE CANNULAE (NO TEMPERATURE SENSING)
    463-103-4NT-S CABLE FOR URF-3AP TO FOUR R.F. PROBE (NO TEMPERATURE SENSING)
  4. Order Enquiry

    Please fill out the form below to enquire about Diros Technology’s Products.

    • 1 + 89 =
